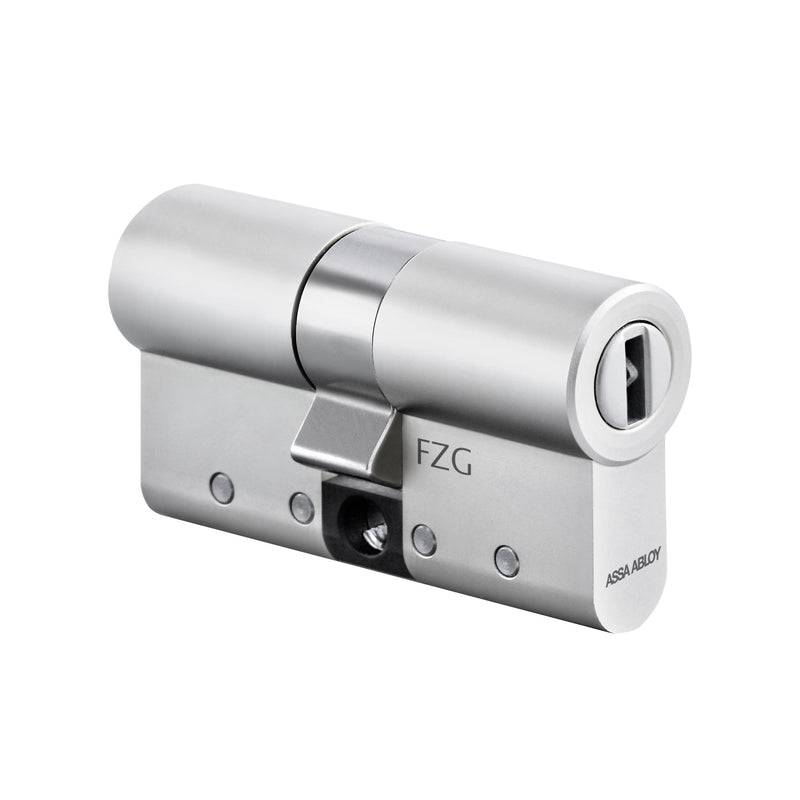

Abloy AB-E-N531-SN eCliq Electronic Double Euro Cylinder CLIQ/Mechanical


$406.08 Ex VAT.


Abloy eCliq Double Euro Cylinder with CLIQ externally, and mechanical only internally. Electronic authorisation required externally only.

Compatible with eCliq locking systems; managed via Web Manager or Local Manager.

Manage and monitor the security of your building using electronic locks.

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments)

Single side locking and 360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel. Standard locking cam position 30°; differing locking positions available

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available for one or both sides (-WP)

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)
