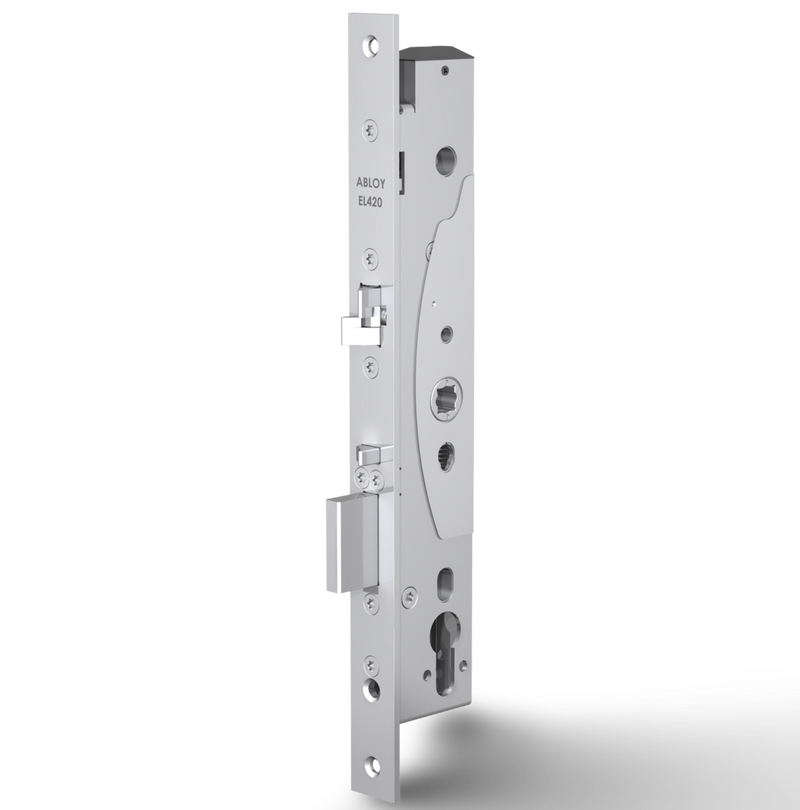

Abloy EL420 Motor Lock

The Abloy EL420 Motor lock is designed for high traffic aluminium doors. It is a heavy duty, high security electric lock that can be used with any access control system.

Abloy EL420 Motor Lock: High-Security Motorized Lock for Aluminium and Narrow Profile Doors

Product Description The Abloy EL420 Motor Lock is the perfect solution for environments demanding high security, durability, and convenience. Designed for seamless integration with door automation & access control systems, this lock offers advanced features such as motorized bolt operation and comprehensive monitoring capabilities, ensuring safety, security and efficiency.

The lock’s deadbolt retracts into the lockcase via a motor when electrically activated, while the double-action latch releases to enable door opening. For added convenience, it can be connected to automated doors for completely hands-free operation. Inside, the lock can be manually released using the handle, providing a reliable mechanical exit function without requiring power.

When the door closes, the deadbolt automatically extends, and the double-action latch locks securely, providing two-point locking for maximum security.

Key Features and Benefits

• Motorised Bolt Operation: Ideal for push-and-pull or automated door systems.
• Day/Night Mode: Provides flexible access control settings.
• Electric Anti-Tampering: Automatically retracts the deadbolt if extended while the door is open.
• Automatic Deadlocking: Mechanical locking ensures consistent security.
• Reversible Handing: Easily adaptable for left-handed or right-handed doors.
• High Security: Features a 20 mm throw deadbolt for enhanced burglary resistance.
• Exit Function: The inside handle mechanically releases the lock for quick, reliable egress.
• Fire-Rated Compatibility: Suitable for installation on fire-rated doors.
• Mechanical Override: Equipped with a cylinder for manual operation.
• Power Failure Backup: Ensures proper operation during power outages by automatically securing or releasing the deadbolt based on the door’s status.
• Integrated Monitoring Functions:
  • Door status
  • Handle activation
  • Deadbolt status (extended/retracted)
  • Cylinder usage
  • Tamper detection


Included Components

• 1 x EL420 Lock case
• 1 x Control unit (EA420)
• Operating manual

Optional Accessories (Ordered Separately):

• Strike plate (e.g., EA324)
• Cable options: EA218 (6m) / EA219 (10m)
• Lead cover: EA280/281
• Handle/pull set (e.g., EH070)
• Mechanical cylinder (e.g., CY321T)

Technical Specifications

• Handing: Reversible (left/right)
• Exit Function: Yes
• Mechanical Cylinder Override: Yes
• Latch: Double-action
• Deadbolt: 20 mm throw
• Input Voltage: 12-24 VDC / 12-18 VAC
• Power Consumption:
  • 12 VDC: Idle 80 mA, Normal Drive 450 mA, Max 1300 mA
  • 24 VDC: Idle 40 mA, Normal Drive 220 mA, Max 600 mA
• Relay Capacity: Max 0.8 A at 30 V AC/DC (Resistive Load, 20 W)
• Fire Door Compatibility: Yes
• Standards Compliance:
  • EN14846:2008 (3S8C-L611)
  • EN179:2008 (376B1342AB)
  • EN1125:2008 (376B1321AB)

Backset options

Choose from 30, 35, 40 and 45mm backsets.

Handles

Optional 60-0719-SSS fixed pad and lever set on narrow longplate. Satin stainless steel.

Override Cylinder

Optional override cylinder (choose from standard or restricted section). 45mm cylinder available via this listing, other cylinder sizes available in the euro cylinder section of the web shop.

Installation

Keytrak emply a team of professional electric lock installers. If you need assistance with installation, please choose this option (cost covers Main Land England & Wales).
