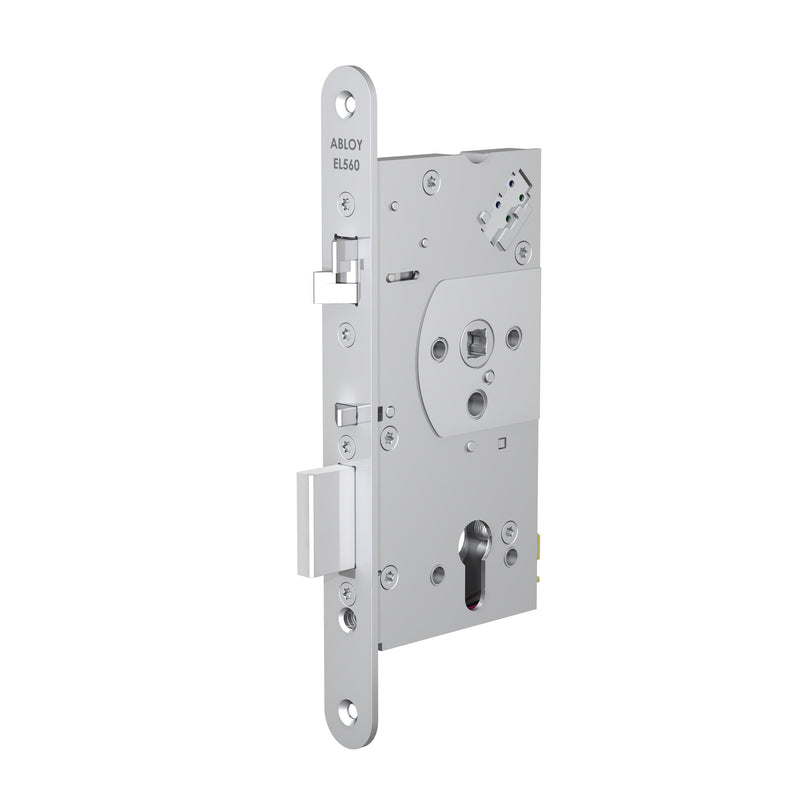

The Abloy EL560 is a euro profile, handle controlled electric lock designed for use with access control systems. It is ideally suited for installation on timber or steel doors.
The internal handle is always active making this lock compliant with BS EN179 when used with lever handles or BS EN 1125 when used with a panic bar (see our Abloy lock packages, or associated handles)
The external handle is activated when the lock receives a valid input from an access control device (keypad, proximity reader etc).

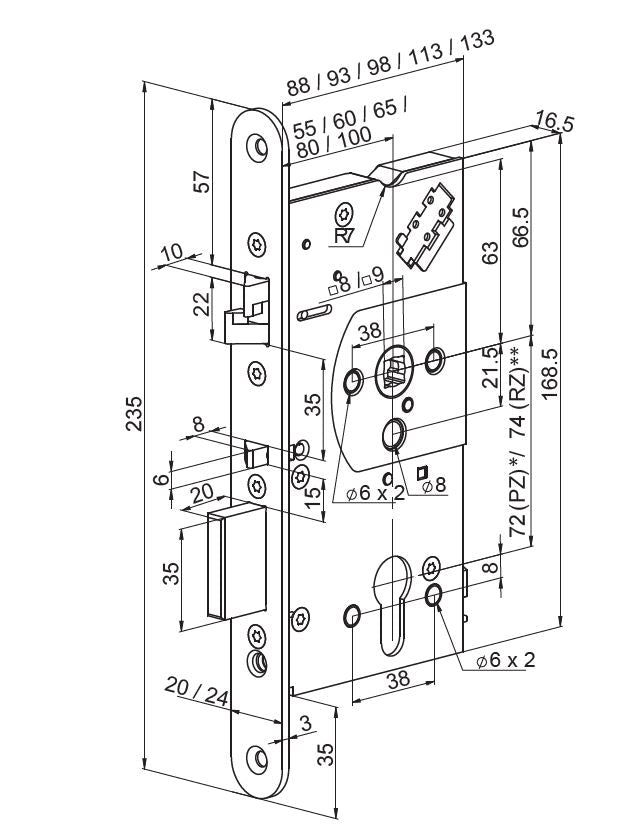

Available as standard in the following backsets: 55, 60 and 65mm (other backsets available on special request).
Supplied with lock cable as standard.
Handles, euro cylinders, panic bars and door loops supplied separatley. Check out the Abloy Lock Packages for fresh installations (Package's 1E, 1E-L and 3P)
