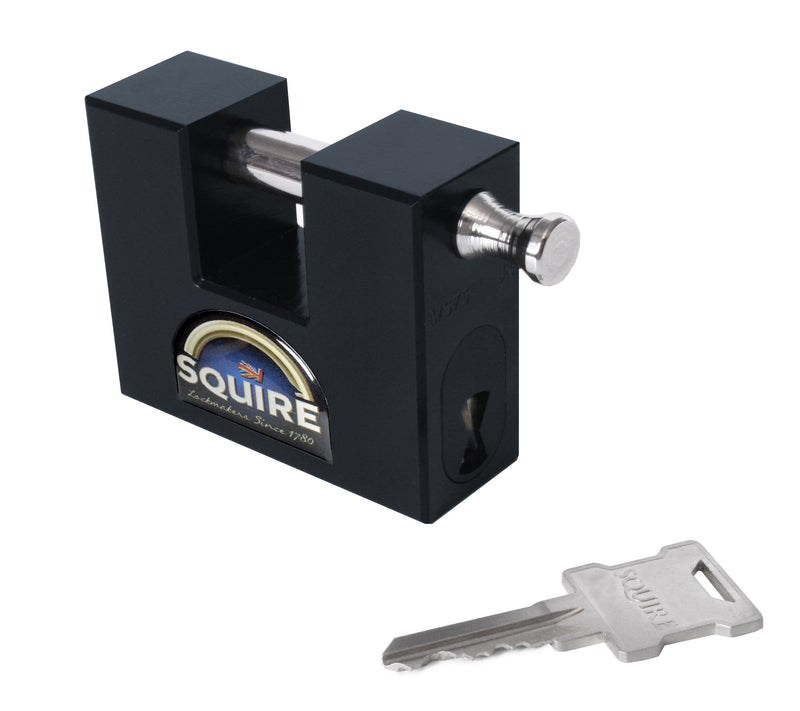

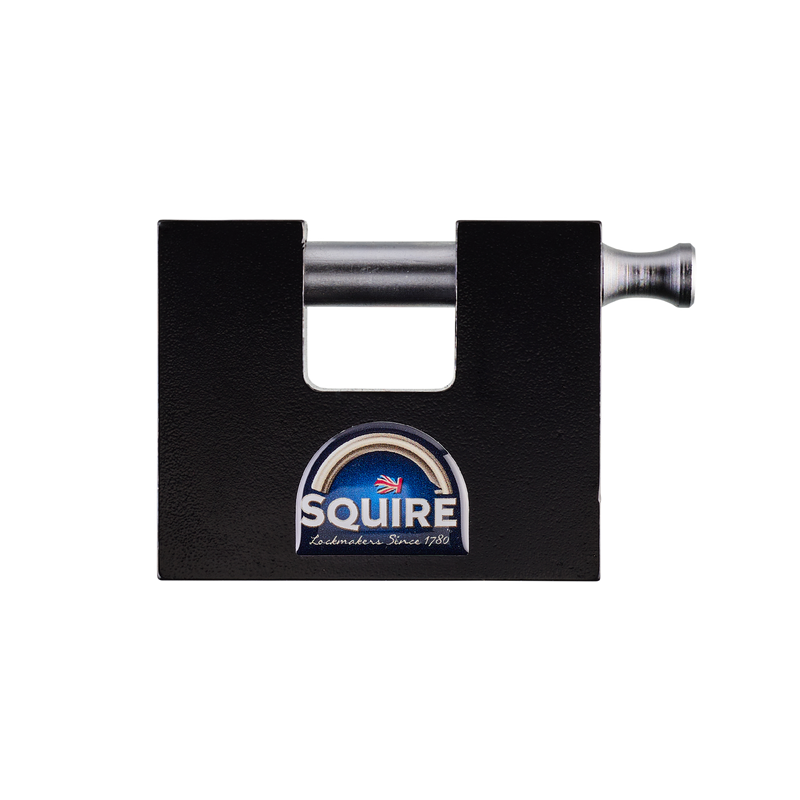

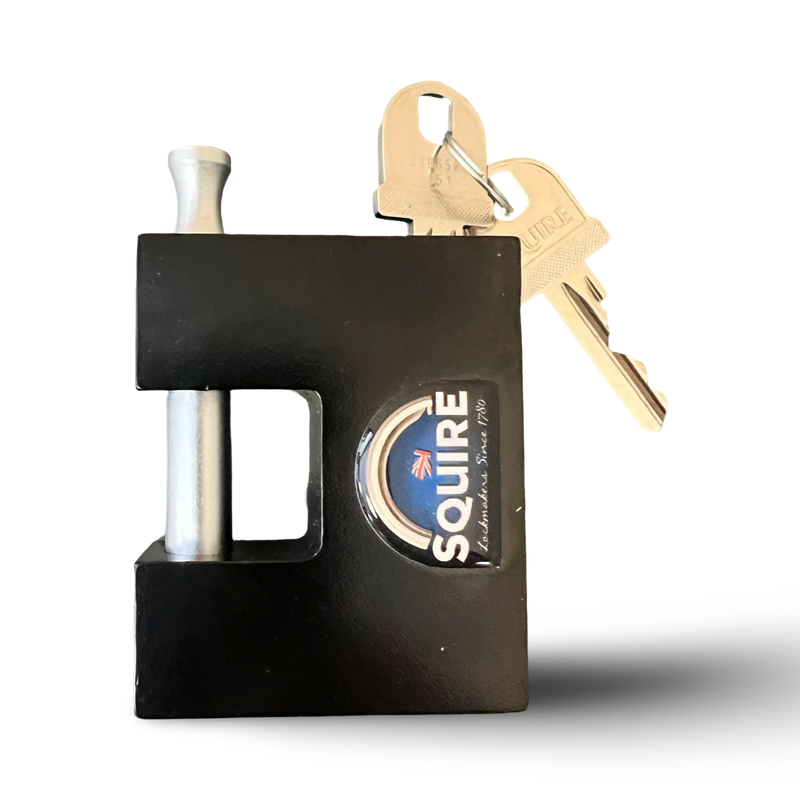

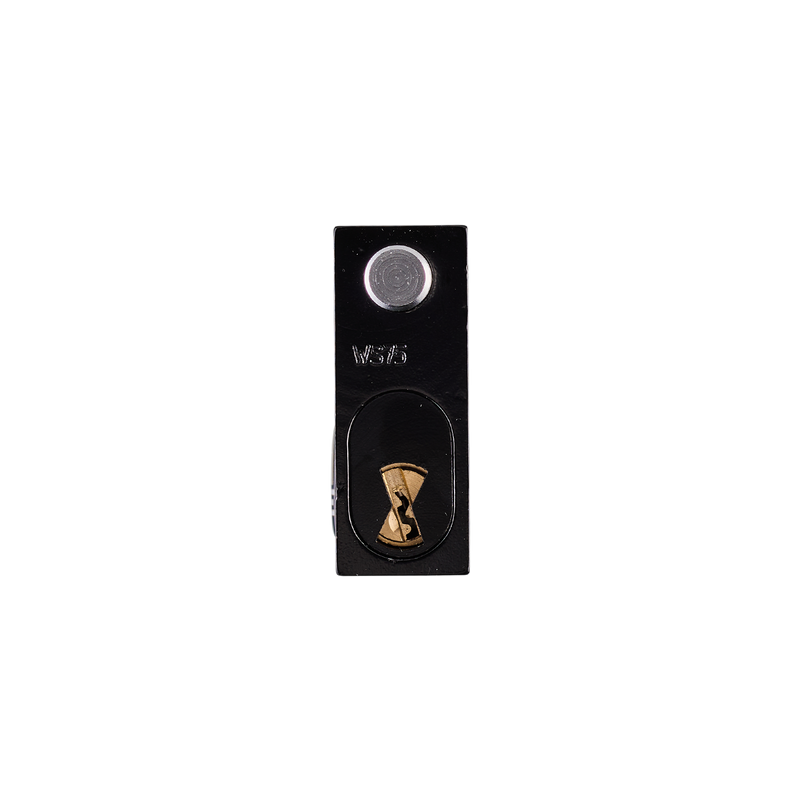

Squire WS75 Container Padlock

The Squire WS75 is the "Rolls-Royce" of container padlocks. Designed specifically for us inside the locking shroud of a shipping container, this padlock offers a high level of security. Tested to Insurance CEN Grade 4, the highest achieved by this style of padlock, you're choosing the best lock for your container if you opt for the Squire WS75.

• 6 pin cylinder
• Black electrophoretic finish (high corrosion resistance)
• Available in master keyed sets
• Available in keyed alike sets
• Extra keys available with order
• Next day delivery for keyed differ orders
• 2 x Keys per lock as standard
• Key registration available

Explanation of pinning options:

1. Keyed Differ (All locks have their own set of individual keys) Extra keys can be added above.

2. Keyed Alike More Than One Padlock (All locks within a set can be opened using the same key) The set will be supplied with 2 keys in total - see separate listing. Extra keys can be added above.

3. Master Keyed (All locks have their own individual keys, but the set will also be provided with an over-riding master key that can open all locks in your set) - see separate listing. Please allow workshop time for master keyed.

Master Keyed Sets Made By Keytrak: Padlocks can be added to your suite in the future with multiple locks working under one master key- ideal for storage sites and container hire/sale outfits.

MULTIPLE LOCK ORDERS & EXTRA KEYS - Remember, if you are ordering multiple locks and you need extra keys be careful not to order more than you actually need. E.G - If you are ordering 10 x locks, and you need 10 x extra keys, just select 1 x extra key with each lock, and then add 10 x locks to your basket.

Will the WS75 fit? Shackle-fit guide

Measure your locking bar, attachment opening and surrounding shroud before choosing your pinning option. These are the lock's published dimensions, not a guarantee of compatibility with a particular container or installation.

Before ordering: measurement checklist

• Check the opening: With the locking bar in its secured position, measure the narrowest clear opening through which the shackle must pass. Compare it with the 12 mm shackle diameter, allowing room for insertion rather than relying on an exact 12 mm opening.
• Check the locking bar: Measure the width and thickness of the bar, hasp or combined hardware that must sit inside the closed shackle. Compare these with the 27 mm internal horizontal clearance and 14 mm internal vertical clearance in the intended fitting orientation. These are internal shackle clearances, not hole-centre spacing or shroud-depth requirements.
• Check the shroud and body space: Measure the available width, height and depth around the fitting position. Compare with the 80 mm wide × 65 mm high × 30 mm deep body, and allow additional room to insert, position and remove the lock and access the key.
• Check operation: Confirm that the surrounding hardware will not obstruct the shackle, lock body or key during locking and unlocking. Matching dimensions alone does not confirm installation compatibility.

Unsure about the fit? Contact Keytrak before ordering with your measurements and clear photos of the locking bar, opening and shroud. Pinning options describe how keys operate the locks; they do not confirm physical fit.

Other Features / Dimensions

• 12mm hardened boron alloy steel shackle
• 80mm solid hardened steel lock body
• Re-keyable 6 pin tumbler lock mechanism
• Over 260,000 key differs
• Anti-bump, anti-pick, highly attack resistant
• Highly corrosion resistant electrophoretic black coating

• Body Depth: 30mm
• Body Height: 65mm
• Body Width: 80mm

• Finish: Black
• Material: Steel (Hardened)
• Horizontal Clearance: 27mm

• Shackle Diameter: 12mm
• Vertical Clearance: 14mm
• Weight: 1.03Kg
• Packaging: Boxed
• CEN 4 Approved (1)
