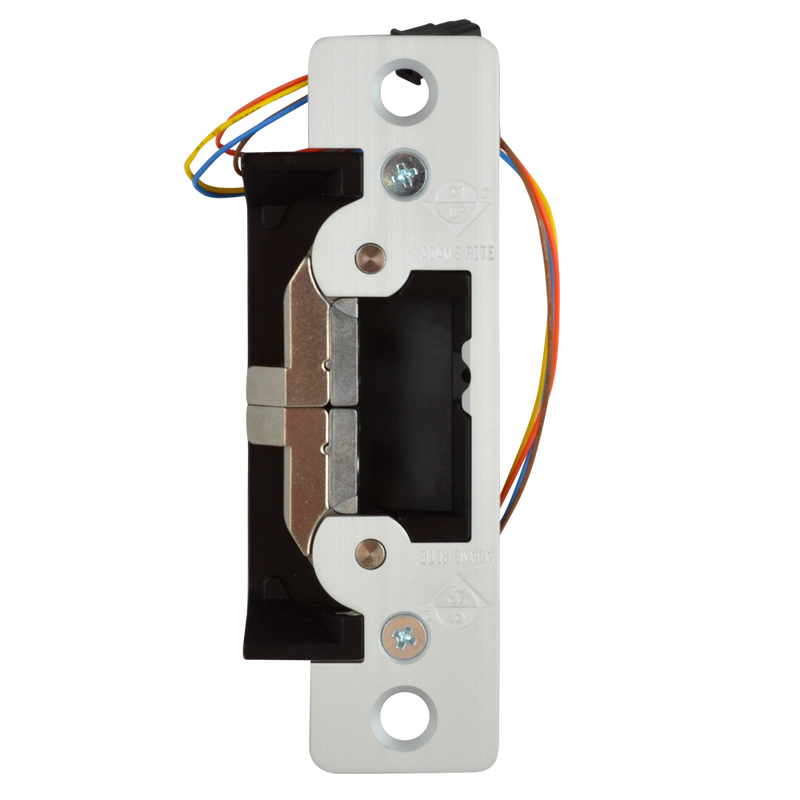

Adams Rite Ultraline 7400 Series Electric Strike
£300.00
£250.00 Ex VAT.
Description
The Adams Rite Ultraline 7400 Series Electric strike is designed for use in aluminium and other narrow profile doors.
Choose from Flat or Radius Faceplate.
Field selectable Fail Locked/Fail Unlocked.
Works with Adams Right Euro Deadlatches or other cylinder operated locks with a latch projection between 12.7 and 15.9mm latch bolt projection.
Holding Force of 1080KG.
Compact design makes this the "go to" electric strike for frames with a narrow depth.
| Adjustable Jaw | No |
| Barcode | 888512103774 |
| Body Depth | 27mm |
| Body Height | 85.6mm |
| Brand | Adams Rite |
| Current Consumption | 12V AC = 0.16A, 12V DC = 0.44A, 24V AC = 0.08A, 24V DC = 0.23A |
| Faceplate Height | 123.7mm |
| Faceplate Width | 31.8mm |
| Finish | Satin Anodised Aluminium |
| Fitting | Mortice |
| Guarantee | 3 Year |
| Holding Force | 907Kg / 2000Lbs |
| Input Voltage | 12/24V AC/DC |
| Jaw Depth | 16.5mm |
| Jaw Height | 85.6mm |
| Jaw Width | 15mm |
| Manufacturer Reference | 7400-628 // 7401-130 |
| Monitored | No |
| Notes | Flat Faceplate To Suit Aluminium Doors |
| Operation | Fail Locked/Fail Unlocked |
| Pack Quantity | 1 |
| Packaging | Boxed |
| Weight | 520g |
Also available: Extension Lips
