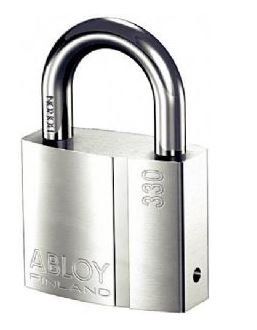

Abloy PL330 Padlock


$83.83 Ex VAT.

Shackle Height: 25mm


The Abloy PL330 padlock is available keyed alike, master keyed and keyed to differ on the SENTRY key mechanism.

The 330 padlock is an all purpose, heavy duty lock of medium strength, brass construction with a chrome finish. This PL330 is of durable construction and offers excellent longevity.

We have found this Abloy padlock to be popular for use with storage doors, motorcycles, gates, trailers, power station switches etc.

Insurance Ratings

CEN Rating:
Grade 3
BS EN12320 Rating: Grade 3

Abloy PL330 Keying Options Explained:

Standard differ: Lock keyed to random differ - supplied with 2 key. Additional keys available from separate "Abloy Sentry Key" listing.

Also available keyed alike and master keyed (see other listings).

Keyed Alike:- With this option your Abloy PL330 padlocks can be built to work to the same key. This is particularly useful if you are buying a set of locks and want to reduce the number keys required (only select this option if you are buying more than one lock). Supplied with 2 x keys for the set. If you add additional keys here, remember you will get this number of extra keys per lock.

Master Keyed: With this option your 330 padlock can be built to work under a master key. Here you have a group of locks that all have their own individual key, but you will also be supplied with a master key that can open all locks. This can be particularly useful where different levels of access are required- i.e A site manager may have a master key to open all locks, and a contractor may have a key that can only open one lock in the set. For more info on Master Keying, please give our team a call/ email. Master keyed locks are supplied with 1 x key per lock as standard.

Abloy PL330 Padlock Dimensions

Body Height: 43.1mm
Body Width: 48mm
Body Depth: 22mm
Shackle Diameter: 8mm

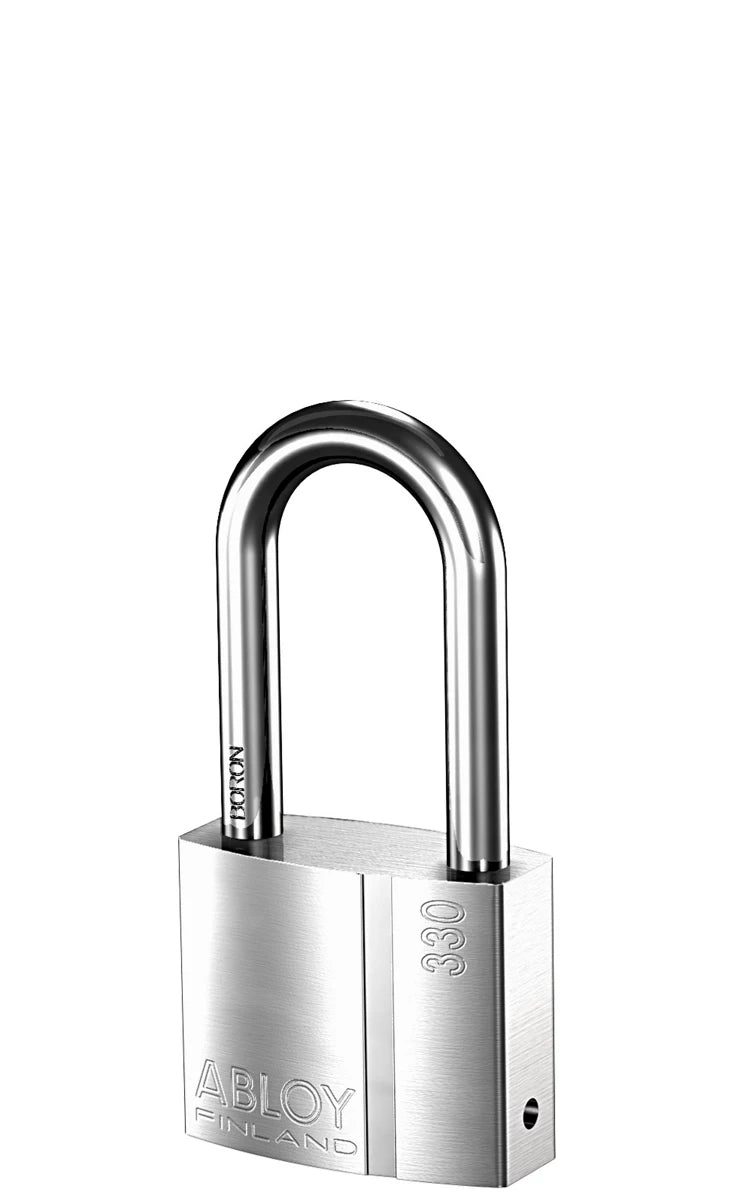

Shackle Clearance: Either 25mm, 50mm or 100mm (options below)

Abloy Padlock Options

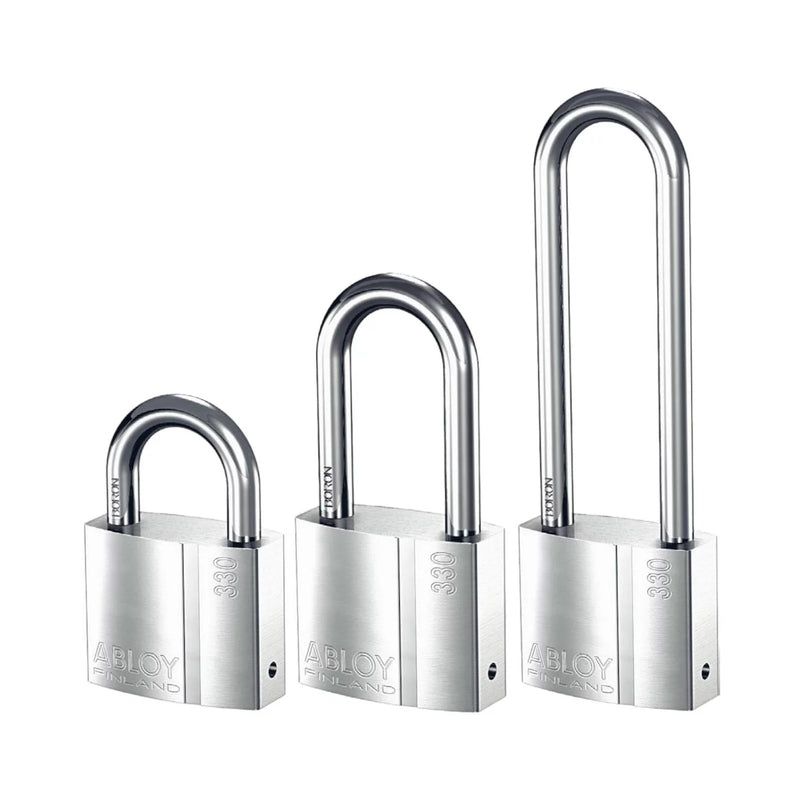

The PL330 padlock is available with three shackle clearances, either 25mm, 50mm or 100mm.
The PL330 is available in Sentry locking mechanism (Information below).
Master Keying and Keying Alike option available for orders of multiple padlocks.
Padlocks come with 2 keys each as standard (unless keyed alike where 2 keys are supplied with the set)
Additional keys can be added to your order below, or by calling the workshop on 0151 495 5740.

Abloy Lock Mechanisms:

For High Security applications- restricted section- keys can only be duplicated with original purchasers authorisation, or with key registration card. Key section patent protected to 2027. Designed specifically for high security, heavy duty applications (water, gas, industrial, utilities, trucks and railways). Extra thick key to cope with demanding environments.
